sensor driven data visualization solutions
Temp DI
Temperature & Humidity

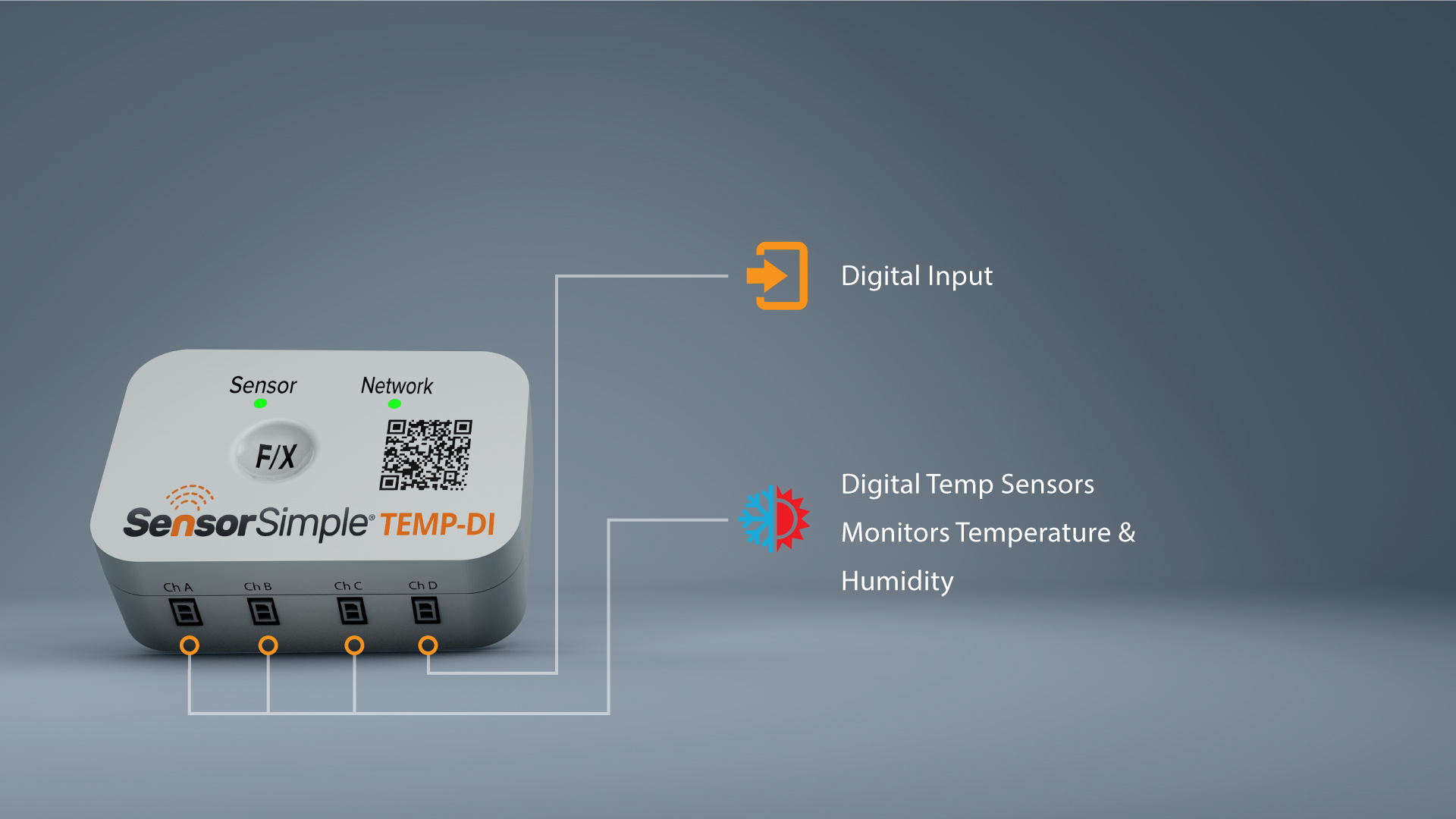

SensorSimple TEMP-DI is a wireless sensor module that provides environmental temperature and humidity data for a wide range of applications from refrigerators, freezers, cold rooms, server rooms, cargo containers, trailers and many more. Internal temp plus (3) external sensor channel options and (1) digital input.
Monitor All Temperature Controlled Areas From One Dashboard
sensors monitor, record and report problems with any asset
built with powerful API toolkits for plug-&-play integration
Easy TO Integrate
And monitor
Data is collected and visualized in the AssetSimple Cloud monitoring solution which provides a robust suite of options from alerts and warnings, configurable dashboards and reports, historical graphs and data widgets.
plug & play
with the flex gateway
Temp DI plugs into the AssetSimple network using the SensorSimple Flex Gateway providing 24/7/365 coverage of assets with a range of up to 1,000’ non line of sight.
Temp 2 Channel
Provides monitoring data to a wide range of applications from our AssetSimple cloud monitoring solution to existing legacy building controls.
Requires the use of an AssetSimple gateway and can be installed in seconds using only its magnetic housing or with the included adhesive backed metal bracket for non magnetic applications.
It comes standard with 2 AA lithium batteries capable of lasting 2-10 years* with a payload that includes the following data: temperature, humidity, battery level, and signal strength.
Outstanding range up to 1,000’ non line of sight.
battery life determined by publish frequency and temperature environment.
Specifications
Dimensions:
3.5″x2.4″x1.5″
Data:
Temperature, Humidity, Battery, RSSI
Requirements:
AssetSimple Gateway
Humidity:
0-100%RH +/-3% precision
Temp:
-55°C to +100°C +/- .5°C
accuracy
Battery:
2 AA Lithium 150k+ publishes
RF:
LoRa 915MHz
Range:
Up to 1k’ non-line-of-site
Sensor Options:
Temperature
6′, 13′, 25′
