sensor driven data visualization solutions

pulse-485

Power/gas & Water

PULSE-485 is a robust wireless battery powered sensor module that provides monitoring for power, water and gas using various metering devices with SO pulse count and RS485 output types.

Monitor All HVAC, Power, Gas & Water Assets From One Dashboard

sensors monitor, record and report problems with any asset

built with powerful API toolkits for plug-&-play integration

Easy TO Integrate

And monitor

Data is collected and visualized in the AssetSimple Cloud monitoring solution which provides a robust suite of options from alerts and warnings, configurable dashboards and reports, historical graphs and data widgets.

plug & play

with the flex gateway

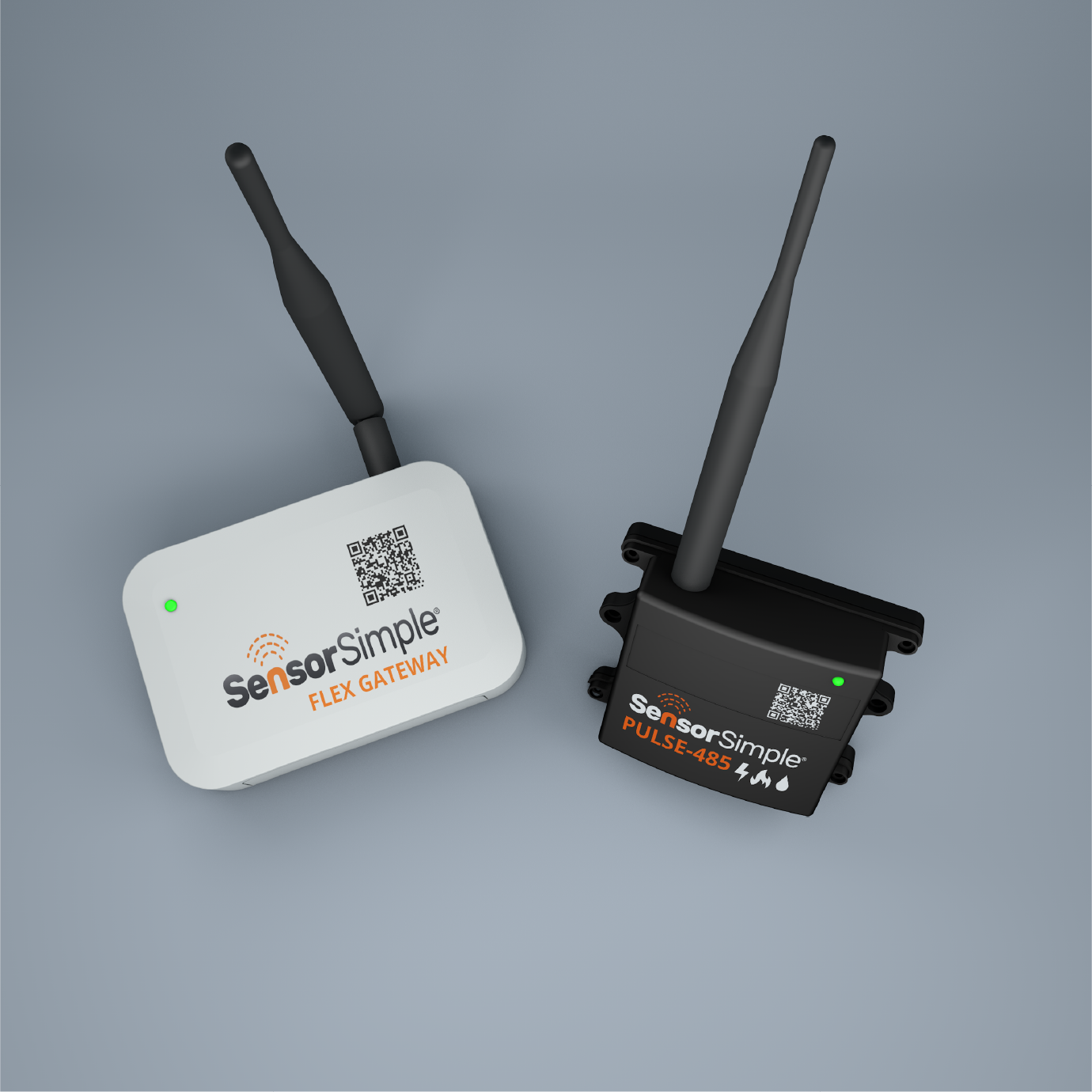

PULSE-485 plugs into the AssetSimple network using the SensorSimple Flex Gateway providing 24/7/365 coverage of assets with a range of up to 1,000’ non line of sight.

Pulse-485



For power monitoring requires external CTs up to 5000a.

Use 1 CT for 120 volt single phase North American, or 230 volt 2-wire foreign systems

Use 2 CTs for 120/240 volt single phase systems

Use 2 CTs for 3-phase 3-wire systems (no neutral) up to 415 volts

Use 3 CTs for 3-phase 4-wire systems up to 277/480 volts

10 year battery life*

Specifications

Dimensions:

 4.4″x3.4″x1.6″

Data:

Power, Temperature, Humidity, Battery, RSSI

Requirements:

AssetSimple Gateway

Power:

Power monitoring for single & three phase up to 5,000 amp 120-480v

Water & Gas:

Monitoring for most
commercial applications

Digital Temp:

-55°C to +100°C +/- .5°C
accuracy

RF:

LoRa 915MHz

Range:

Up to 1k’ non-line-of-site
