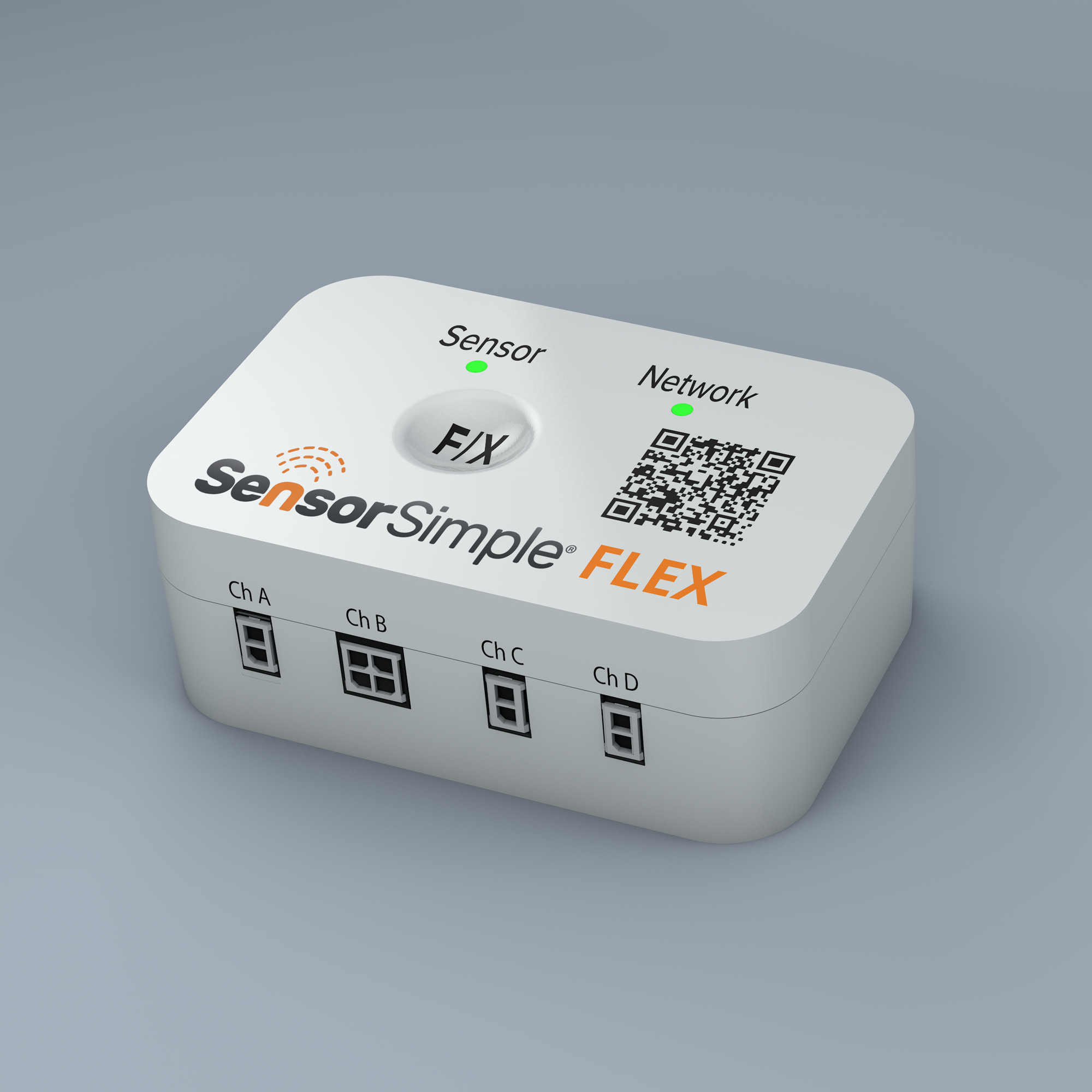

Flex 4 Channel

Temperature & Humidity

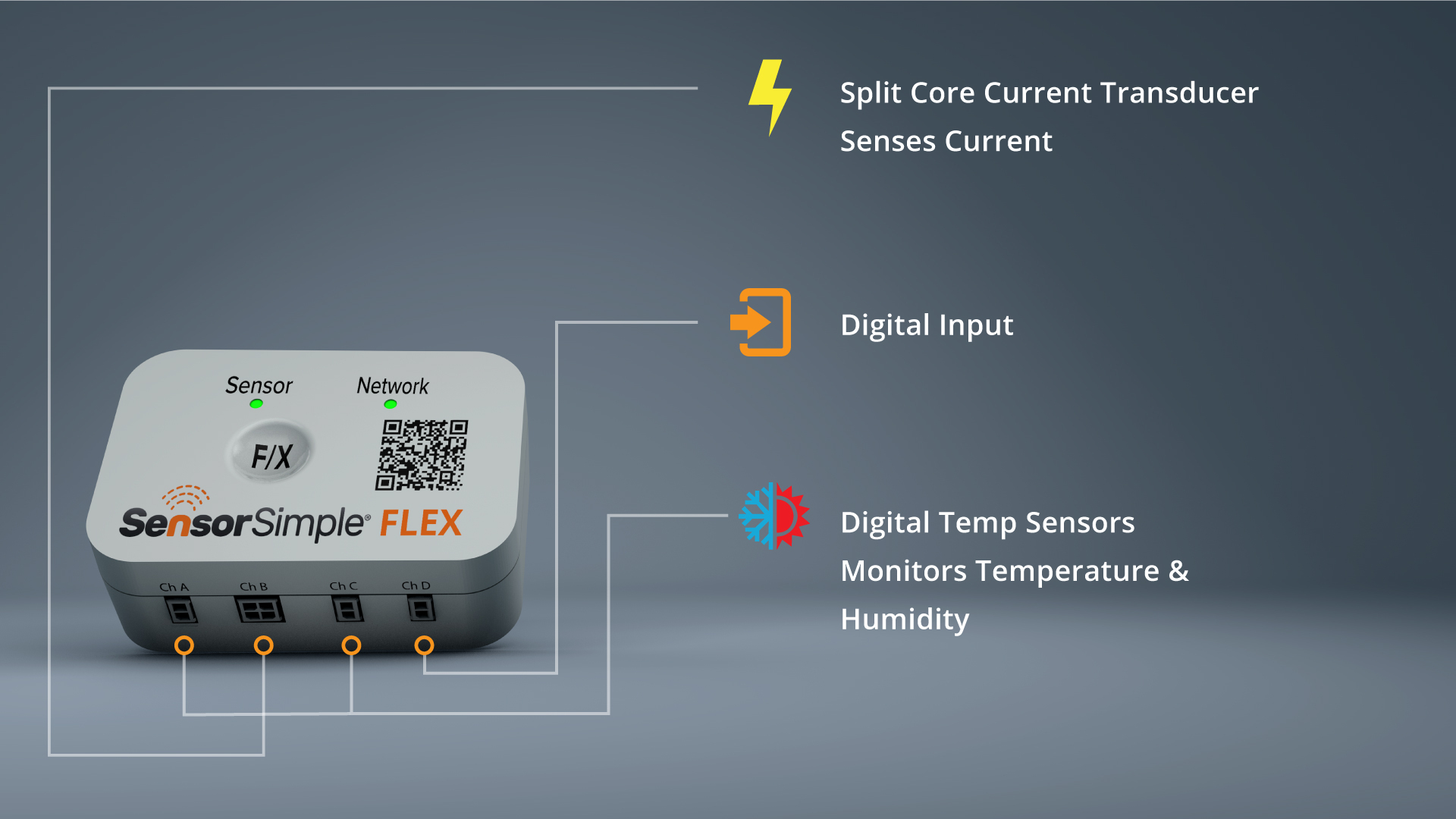

SensorSimple FLEX 4 Channel is a wireless sensor module that provides environmental temperature and humidity data for a wide range of applications from refrigerators, freezers, cold rooms, server rooms, cargo containers, trailers and many more. Internal temp plus (2) external external Temp sensor channel options, (1) current sensor channel and (1) digital input.

Monitor All Temperature Controlled Areas From One Dashboard

sensors monitor, record and report problems with any asset

built with powerful API toolkits for plug-&-play integration

Easy TO Integrate

And monitor

Data is collected and visualized in the AssetSimple Cloud monitoring solution which provides a robust suite of options from alerts and warnings, configurable dashboards and reports, historical graphs and data widgets.

plug & play

with the flex gateway

Flex 4 Channel plugs into the AssetSimple network using the SensorSimple Flex Gateway providing 24/7/365 coverage of assets with a range of up to 1,000’ non line of sight.

Flex 4 Channel



Provides monitoring data to a wide range of applications from our AssetSimple cloud monitoring solution to existing legacy building controls.

Requires the use of an AssetSimple gateway and can be installed in seconds using only its magnetic housing or with the included adhesive backed metal bracket for non magnetic applications.

It comes standard with 2 AA lithium batteries capable of lasting 2-10 years* with a payload that includes the following data: temperature, humidity, battery level, and signal strength.

Outstanding range up to 1,000’ non line of sight.

battery life determined by publish frequency and temperature environment.

Specifications

Dimensions:

3.5″x2.4″x1.5″

Data:

Temperature, Humidity, Battery, RSSI

Requirements:

AssetSimple Gateway

Humidity:

0-100%RH +/-3% precision

Digital Temp:

-55°C to +100°C +/- .5°C
accuracy

Battery:

2 AA Lithium 150k+ publishes

RF:

LoRa 915MHz

Range:

Up to 1k’ non-line-of-site

Sensor Options:

Temperature
6′, 13′, 25′
Digital Input Option
6′, 13′, 25′
Current Sensor
100A, 200A

External Power Source Optional
